DONN® Brand DXH® 38 T24 Suspension System

In stock
SKU
t24-hd-main
System Components
Main Runner
SAR 1.00
Wall Angle Shadowline
SAR 1.00
Wall Angle
SAR 1.00
Long Cross Tee
SAR 1.00
Short Cross Tee
SAR 1.00
U-Trim
SAR 1.00
ACM7 Seismic Clip
SAR 1.00
DH4 4 Way Seismic Module Connector
SAR 1.00
30"/48" Seismic Compression Post
SAR 1.00
Load More
Overview

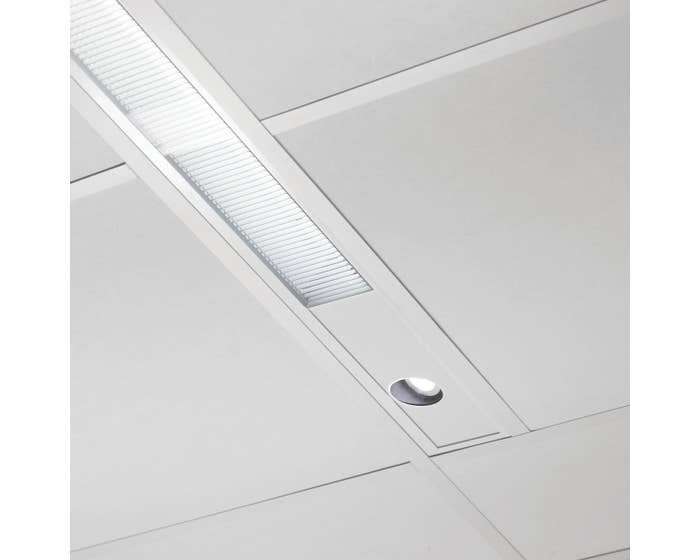

One of the most popular suspended ceiling carrier systems is the DONN DXH-38 T24 Ceiling Suspension Grid. The system's product locking feature makes it simple to assemble and disassemble without the use of any additional tools. The DONN DXH-38 T24 system, which creates the tile system, uses a snap lock mechanism to secure the profiles from the connection points so that it may self-balance during installation.

As a result, it can be utilized in a variety of settings, including workplaces and small businesses, as well as public structures like buildings, shops, hospitals, and institutions. It is a material that is strong and beautiful due to its exceptional load carrying capacity.

Specifications



DONN Brand DX/DXH 38 T24 Suspension System features

  • DONN® Brand DXH® 38 T24 Heavy Duty feature a body and cap made of G30 hot-dip galvanized steel as per EN 10346/ASTM A653 with pre-painted 24mm width capping to ensure that the cap remains attractive and rust-free
  • Four-step coating process that outperforms in paint adhesion and corrosion resistance, as proven by industry-standard salt spray tests conducted by an Independent laboratory
  • Safe, fast and simple to install & easily accessible
  • Maximum economy and design simplicity
  • Cross-tees with override-ends resist twisting and give professionally finished look with no exposed steel edges
  • Patented QUICK-RELEASE clip design: demountable without tools
  • Compatible with Square, SLT and Concealed ceiling tiles edges
  • Audible Click means you know when tees are connected
  • Exceed load compliance specifications as per ASTM C 635
  • Available in metric and imperial sizes



DONN Brand DX/DXH 38T24 Suspension System applications

  • Interior general-use areas
Documents Files
Ceiling Specification Format (CSI)
Sustainability tool
