Jamb Strut members are fabricated from hot-dipped galvanized steel complying with ASTM A653, with a minimum G40 coating. The framing members comply with ASTM C645. Used with fire and sound rated assemblies listed under the code and Gypsum Association Fire Resistance Design Manual.
Jamb Strut members are fabricated from hot-dipped galvanized steel complying with ASTM A653, with a minimum G40 coating. The framing members comply with ASTM C645. Used with fire and sound rated assemblies listed under the code and Gypsum Association Fire Resistance Design Manual.

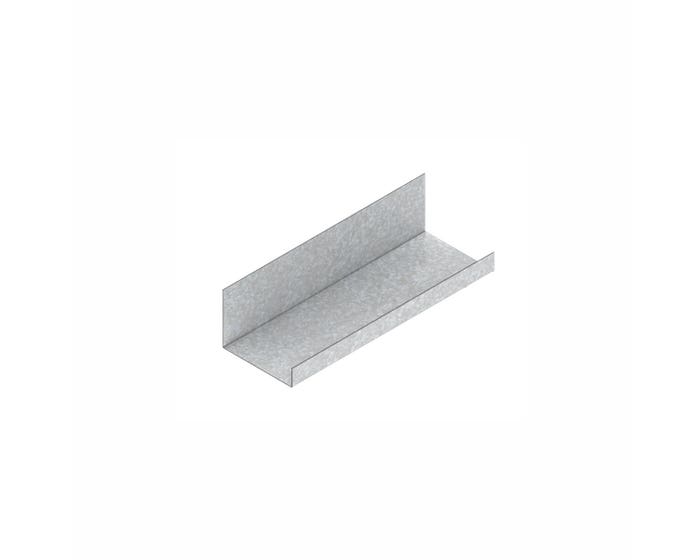

Shaftwall Jamb Strut Framing System features
Shaftwall Jamb Strut Framing System application
Used to build horizontal shaft walls, ceilings, services risers, air return shafts, stair shafts, elevator shafts, and mechanical shafts.
| Item | Size | Color | Edges | Cac | Nrc | Thickness | |
|---|---|---|---|---|---|---|---|
| 400JS-23 | 25x102x76mm | ||||||
| 400JS-24 | 25x102x76mm | ||||||
| 400JS-32 | 25x102x76mm | ||||||
| 400JS-34 | 25x102x76mm | ||||||
| 400JS-48 | 25x102x76mm | ||||||
| 400JS-58 | 25x102x76mm | ||||||
| 600JS-23 | 25x152x76mm | ||||||
| 600JS-24 | 25x152x76mm | ||||||
| 600JS-32 | 25x152x76mm | ||||||
| 600JS-34 | 25x152x76mm | ||||||
| 600JS-48 | 25x152x76mm | ||||||
| 600JS-58 | 25x152x76mm | ||||||
| 212JS-23 | 25x63x76mm | ||||||
| 212JS-24 | 25x63x76mm | ||||||
| 212JS-32 | 25x63x76mm | ||||||
| 212JS-34 | 25x63x76mm | ||||||
| 212JS-48 | 25x63x76mm | ||||||
| 212JS-58 | 25x63x76mm | ||||||
| 400JS2-34 | 50x102x76mm | ||||||
| 600JS2-32 | 50x152x76mm | ||||||
| 600JS2-34 | 50x152x76mm | ||||||
| 212JS2-34 | 50x63x76mm |
